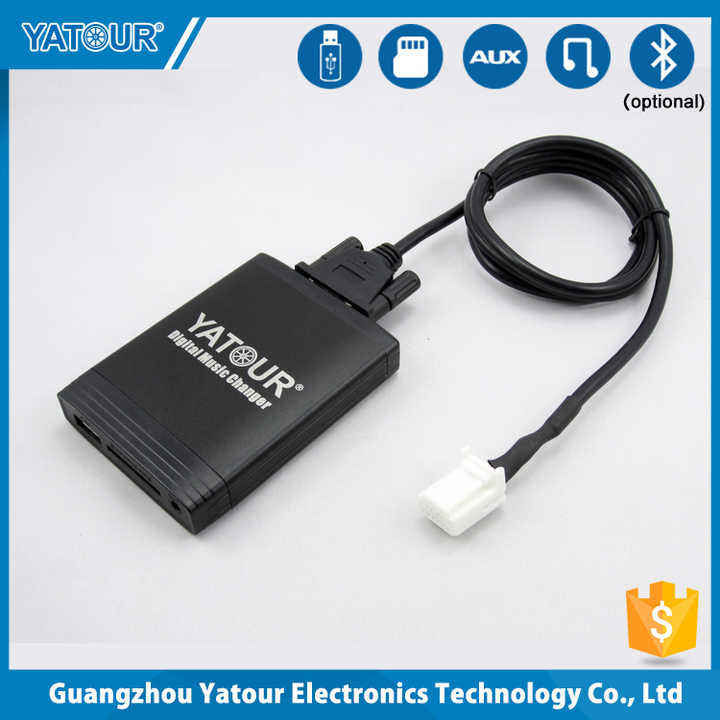

Car usb adapter mp3 aux interface/car stereo usb sd mp3 adapter
* Features:
* Support USB / SD / AUX IN
* Deliver Original CD quality sound through CD Changer port
* Plug and Play
* Direct controls from car radio panel
* Supports last position memory(LPM)
* Able to work together with original Mechanical Disc Box, arbitrary switch playing allowed
* Optional Bluetooth function support.
*Specifications :
| Voltage input:11v~14.6v DC | Operational current: 200mA |
| Standby current : 3mA | Operating Temperature : -35 °C~+85 °C |
| DAC resolution : 20bit | Total harmonic distortion : 0.05% |
| SN ratio : 90dB | Frequency response : 20Hz-20KHZ |
*Compatible car :
| 1999-2003 VW/Audi/Skoda/Seat 8pin |
| 2004-2011 VW/Audi/Skoda/Seat 12pin |
| 2004-2011 VAG with existing CD changer |
| 1994-1998 VW Gamma4 |
| 1991-2000 BMW/Mini/Rover 17pin round |
| 2000-2006 BMW/Mini/Rover 40pin flat |
| 1991-2006 BMW 3pin+6pin trunk connection |
| Smart450(Grundig) 8pin |
| 1994-1998 Mercedes 10pin |
| 97-04 Peugeot/Citroen |
| 05-11 Peugeot/Citroen |
| 98-08 Renault/VDO 8pin |
| 09-11 Renault quadlock 12pin |
| 05-11 Fiat/Alfa/Lancia blaupunkt |
| 94-04 Europe Ford/Lincoln |
| 03-11 Europe Ford quadlock new |
| European Suzuki/Fiat/Opel 14pin |
| 94-00 Volvo (SC headunit) |
| 99-07 Volvo (HU headunit) |
| 2006+ Opel CD30 MP3/CD300 radios |
| 05-11 Toyota/Lexus 6+6 small |
| 05-11 Toyota/Lexus 6+6 with CD changer |
| 98-04 Toyota/Lexus 5+7 big |
| 05-12 Toyota Aygo/Citroen C1/Peugeot 107 |
| 2006-2011 Honda/Acura |
| 2006-2011 Honda/Acura with CD changer |
| 2001-2010 Goldwing GL1800 |
| 1998-2005 Honda/Acura |
| 2002-2008 Mazda |
| 2009-2012 Mazda with can-bus |
| 2000-2011 Nissan/Infiniti |
| 04-09 Hyundai standard radio 8pin |
| Hyundai/Kia standard radio 13pin |
| Alpine M-bus |
| Alpine AI-Net |
| Becker/Porsche/Ferrari |
| Nissan Micra/Blaupunkt with DMS symbol |
| Clarion CE-NET/ Suzuki/Subaru |
| JVC Unilink |
| Pioneer IP-Bus |
| Sony |
| Sanyo |
* Installation Diagram :
This device is only suitable for vehicles whose Head Unit (either Original or Refitting) is with CD Changer Port.
Note : Mp3 / CDC Swith cable is optional , available for some vehicles only.
*How to save music into folders :
1. Name folders as CD01 ,CD02 ,CD03...etc
2. The naming of songs is unrestricted .
3. Don't save music files in the folders of the sub directory , otherwise , can't recognized .
4. Support mp3 / wma .
Below is showing example .

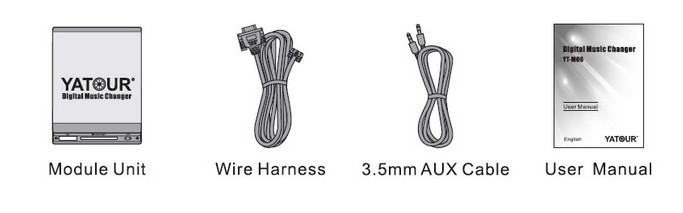

* Accessories:
1 pc Module , 1pc wireless harness , 1pc 3.5mm aux cable , 1 pc user manual
*Package:
• Standard packing box : 210 x 150 x 60 mm
• Half-size packing box : 150 x 105 x 60 mm
• Module weight : 90g
• Gross weight : 220g~400g
